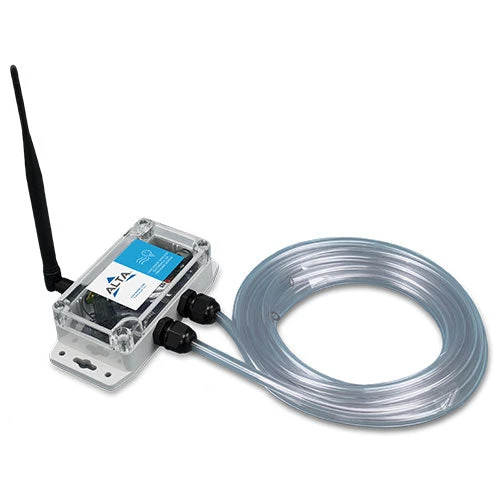

ALTA Industrial Differential Air Pressure, 900MHZ

This turnkey sensor measures the pressure difference between its two ports. Ideal for food service, healthcare & academia. Common applications include clean rooms, pharmaceutical production, commercial kitchens, and HVAC.

Monnit MNS2-9-IN-PS-DP Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Pressure Range: -500 Pa to 500 Pa

Allowable Overpressure: 100 kPa

Rated Burst Pressure: 500 kPa

Max Humidity for Long-Term Exposure: 40°C dew point

Accuracy: 3% of reading +/- 0.1 Pa

Span Repeatability: 0.5% of reading

Span Shift Due to Temperature Variation: < 0.5% of reading per 10°C

Offset Stability: < 0.05 Pa/year

Calibrated For: Air, N2

Media Compatibility: Air, N2, O2, non-condensing

Lead Wire Length: 3 ft. (91.5 cm.) DW-0026-02 Tubing

Variation Specifications

Supply Voltage: 2.7–3.8 VDC (3.0–3.8 VDC using power supply)

Weight: 9.9 oz. (281 g.)

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
