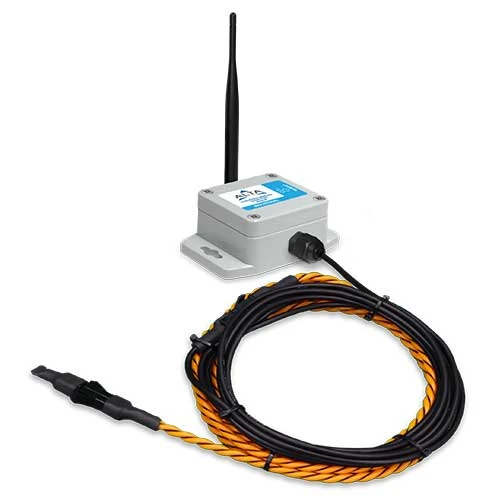

ALTA Industrial Wireless Water Rope Sensor, 900MHZ

Wireless sensor detects water leaks or spills along its conductive rope. Install anywhere water can ruin assets or endanger people, e.g., high-traffic areas, server rooms, apartments, or along foundations.

Monnit MNS2-9-IN-WS-WR Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Water Detect Rope Specifications

Material: PE + alloy lead

Pull Force Limit: 60kg

Fire Resistance: Second pressure plenum cable

Cable Diameter: 5.5mm

Core Resistance: 3ohm/100 meters

Maximum Exposed Temperature: 75°C (167°F)

Cable Length: 10 ft. (120 in.) included (expandable to 100 ft.)

Variation Specifications

Weight: 10.4 oz. (295 g) – with 10 ft. (3.05 m) lead

ALTA Industrial Specifications

Supply Voltage: 2.0 – 3.8 VDC

Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)

Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.*

Max Operating Temperature: -40° to 85°C (-40° to 185°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles – 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)

Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure

UL Rating: UL Listed to UL508-4x specifications (File E194432)

Dimension: 3.7 in x 2.32 in x 1.38 in

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
