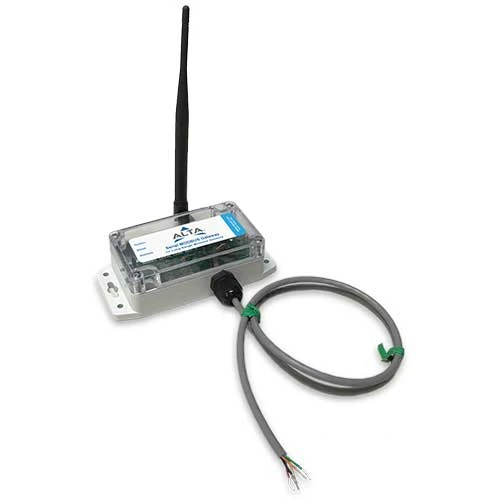

ALTA Serial MODBUS Gateway, 900MHZ

The Monnit Serial Modbus Gateway acts as a data concentrator for Monnit wireless sensor networks. This device incorporates Monnit’s Access Point Node (APN) and Serial RS-232C and RS-485 Interfacing hardware.

Monnit MNG2-9-SG-SMG Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Monnit Serial Modbus Gateway Specifications

Antenna: Connector: RP-SMA Gain: 5.0 dBi Standard

Protocols Supported: Jumper for RS-232 and RS485

Input Voltage: 4.5 – 36.0 VDC

LED Lights: Wireless Activity, Wired Activity, System Status

Enclosure Material: Durable, Impact-Resistant UV Stabilized Polycarbonate (IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 Rated)

Dimension: 179.603 x 90.678 x 41.30 mm

Weight: 16 oz.

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
