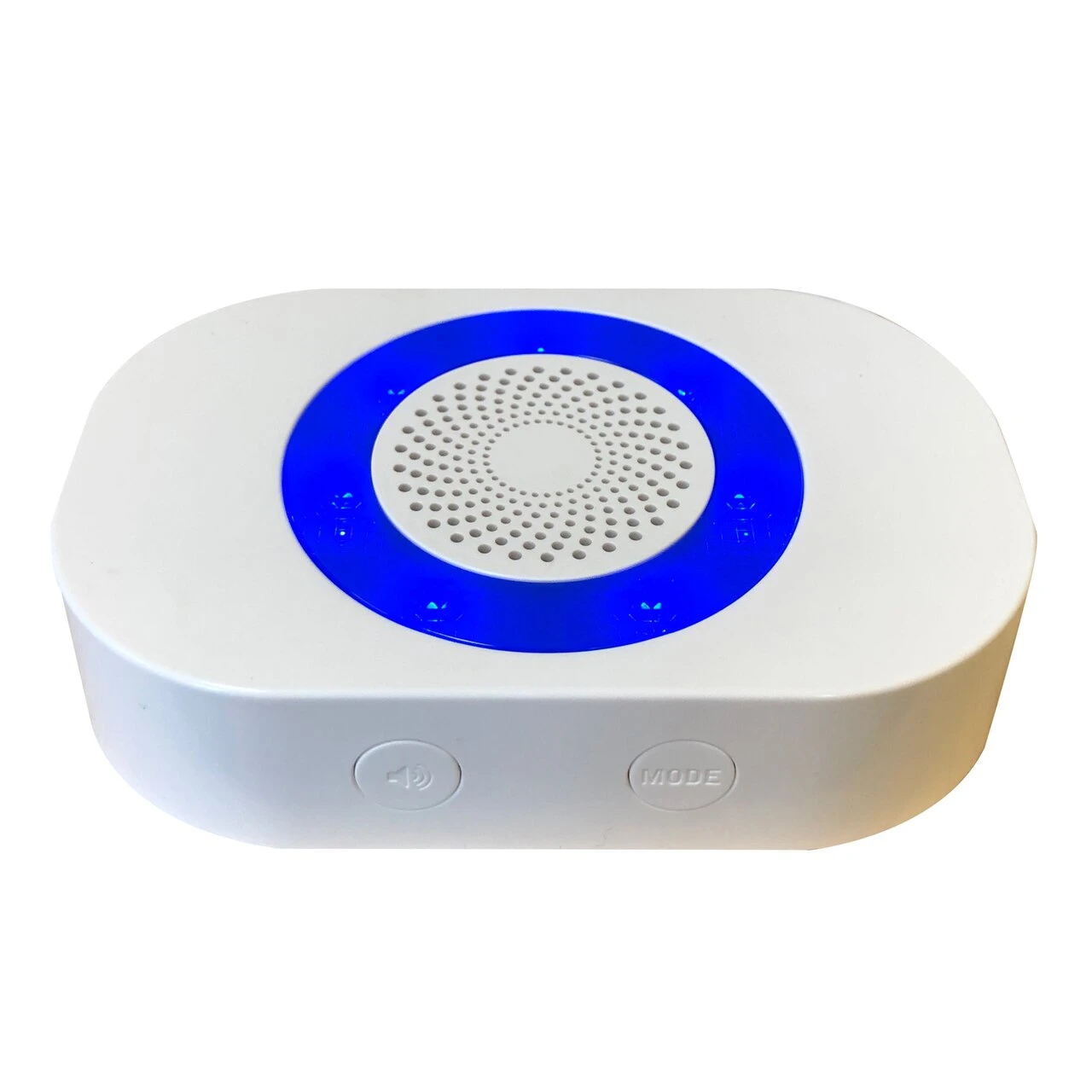

Dakota Alert RE-4K-PLUS 4000 Wireless Receiver And Chime With Relay

Dakota Alert 4000 PLUS Wireless Driveway Alarm Receiver and Chime with Relay

The Dakota 4000 RE-4K-PLUS Receiver with Chime and Relay is capable of receiving a wireless signal from any of the Dakota Alert 4000 series wireless driveway alarm systems or sensors. It can accept up to 16 wireless 4000 series transmitters and offers a selection of 12 different tunes.

Expand your Dakota system with an additional receiver.

The RE4KPLUS has two form C relay outputs and a 12VDC relay output that can be activated when one of the sensors are triggered. This allows the receive to be connected to an external siren, strobe light or to an alarm or automation system. The relay and voltage outputs can be set to trigger for 1 second, 5 seconds, 15 seconds, or 5 minutes when a sensor is activated. Each sensor can have its own turn and it’s own activation time.

*IMPORTANT – While this receiver replaces the DCR3000 and DCR250 the 4000 series is not compatible with 3000 series or 2500 series transmitters.

The RE-4K-PLUS has a wireless range of up to 1 mile*, meaning you can reach virtually any part of your property without the need for signal repeaters. Add an extra receiver(s) to your Dakota Alert 4000 series to enable notifications in different rooms, offices, the garage, shed or barn.

Select from these available tones:

• Ding Dong (high)
• Ding Dong (low)
• Westminster
• Fur Elise
• Alarm/Siren
• Coo Coo Clock
• Bird Chirping
• Twinkle Twinkle
• William TellCannon in D
• MorningToreador March

Dakota Alert RE-4K-PLUS Wireless Alarm Receiver Specifications

• 16 Different Sensors can be enrolled
• 2 x form C (normally open and normally closed) relays, rated 3A @ 30VDC
• 1 x 12VDC output max 400mA
• Volume Control
• LED Indicator Lights
• Operating Voltage – 12VDC – Power Supply Included
• Frequency – 433.92 MHz
• Wireless Range – up to 1 Mile*

Dakota Alert RE-4K-PLUS Wireless Driveway Alarm Receiver Includes

• 1 x Dakota Alert RE-4K-PLUS Wireless Receiver
• 1 x 12V Power Supply

* Wireless range is line of sight without obstacles or interference. Real world distance will be less where obstacles and/or interference is present.

Dakota Alert RE-4K-PLUS Wireless Driveway Alarm Receiver Support

• RE-4K-PLUS User Guide



NOTE: RELAY CONTACTS ARE RATED FOR LOW VOLTAGE DC ONLY.  DO NOT CONNECT HIGH VOLTAGE OR AC POWER TO THE OUTPUT RELAYS.
