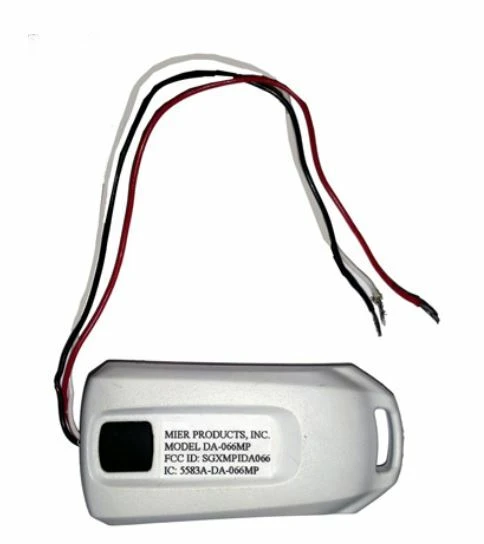

Mier DA-066MP Wireless Remote Chime Transmitter

Mier DA066MP Wireless Remote Chime Transmitter

This transmitter can be triggered by either by a signal sent to activate chimes or by pressing a button to manually trigger the chimes. It can be used as an add-on to the DA-600 Drive-Alert model in case a user decided later that they would like remote plug-in chimes that sound nicer instead of the standard piezo whistle that comes with the model. Activates a wireless DA-078 up to 100ft away.

The DA066MP also gives the panel the ability to have alerts sound in multiple rooms or can be used for portable alerts. ItFTs backwards compatible with any older wireless chime Mier Products. It mounts on top of the Control Panel.

Installation is simple, connect the RED wire to the +24VDC terminal, then the BLACK wire to NEG or GND then a JUMPER from that same NEG to the C terminal and finally the WHITE wire to the NO terminal.

Mier DA066MP Wireless Remote Chime Transmitter Specifications

• Backwards compatible
• Can be added to the DA600
• Can be used for alerts in multiple rooms or for portable alerts
• 15 to 30 VDC at .025 AMPS on RED and BLACK wires
• Frequency: 315 Mhz

Mier DA066MP Wireless Remote Chime Transmitter Support

• DA066MP Instructions
