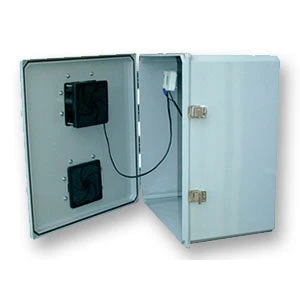

Mier NEMA 3R Enclosure, 16x14x7, 12-Volt Fan-Ventilated With Thermostat

The “FC Series” fan-cooled & ventilated NEMA 3R outdoor/indoor enclosures are an inexpensive choice for installation where you need an air-flow exchange to ventilate your components mounted within enclosures. However, please keep in mind that fan-cooled & ventilated enclosures simply exchange internal air for external air. Therefore, Fan-Cooled models are not recommended for extreme high-temperature or extreme low-temperature environments. Because these units pull external air into the enclosure through a filtering system, they are listed as NEMA 3R and do not meet the NEMA 4 standards of Mier’s air-conditioned and heated models (ACE Series or ACHT Series) which are the safest choice when your components need NEMA 4 type protection from the elements such as moisture, heat, cold, wind, rain, snow, ice, etc., or from wash down conditions.



Product Features:

• Dimensions: 16″ W x 14″ H x 7″ D
• Color: Gray
• Outdoor, NEMA 3R Design
• Non-metallic polycarbonate enclosure allows you to place transmitters/receivers inside
• 81 cubic foot-per-minute thermostatically controlled fan
• Air intake and fan exhaust protective shrouds with gasket and hardware
• Air filter
• All holes pre-cut to install included shrouds, fans, filters
• Gaskets
• Removable hinged doors come with stainless steel latches which are both pad-lockable and screw down
• Optional Back Panels or DIN Rails fit onto standoffs already existing in the back of the enclosure
• Optional Back Panel Adjustment Kit allows you to “stack” panels within the enclosure
• Optional keyed lock available
• Part Number: BW-FC161471
• Brand Name: Mier
• Manufacturer: Mier Products, Inc
• Manufacturer Part Number: BW-FC1614712V
• Product Model: BW-FC1614712V
• Product Name: BW-FC1614712V NEMA Enclosure
• Product Series: FC
• Product Type: NEMA Enclosure



Product Specifications:

• Application/Usage: Indoor, Outdoor
• Depth: 7″
• Depth (mm): 177.8
• Form Factor: DIN Rail, Panel-mountable
• Height: 14″
• Height (mm): 355.6
• Product Color: Gray
• Product Material: Polycarbonate
• Width: 16″
• Width (mm): 406.4
