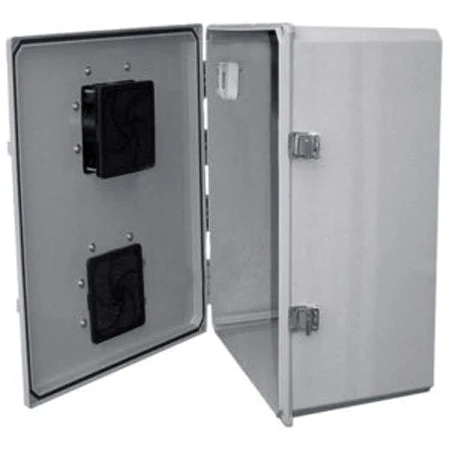

Mier NEMA 3R Enclosure, 20x16x8, 12-Volt Fan-Ventilated With Thermostat

Product Features:

• Outdoor, NEMA Type 3R
• Highly adaptable internal panel adjustment and rail system
• Fan Ventilated, NON-METALLIC Enclosure polycarbonate enclosure allows you to place transmitters/receivers inside!
• Interior water channel & gaskets for added protection
• 81 cubic foot-per-minute thermostatically controlled fan
• Air intake and exhaust protective shrouds with gasket and hardware
• Air filters
• All holes pre-cut to install included shrouds, fans, filters
• Gaskets
• Latches pull the door tight into the gasket
• Pad-lockable and screw down
• Optional Back Panels or DIN Rails fit onto standoffs already existing in the back of the enclosure
• Optional Back Panel Adjustment Kit allows you to “stack” panels within the enclosure
• Optional keyed lock available



Physical Features:

• Depth: 8″
• Depth (mm): 203.2
• Height: 16″
• Height (mm): 406.4
• Product Color: Gray
• Product Material: Polycarbonate
• Width: 20″
• Width (mm): 508



Product Specifications:

• Part Number: BW-FC20168
• Brand Name: Mier
• Manufacturer: Mier Products, Inc
• Manufacturer Part Number: BW-FC20168
• Product Model: BW-FC20168
• Product Name: BW-FC20168 NEMA Enclosure
• Product Series: FC
• Product Type: NEMA Enclosure
• Power Source: AC
• Country of Origin: United States
