Optex IVision+ Connect IVPC-DM Video Doorbell Intercom With 7 Inch LCD

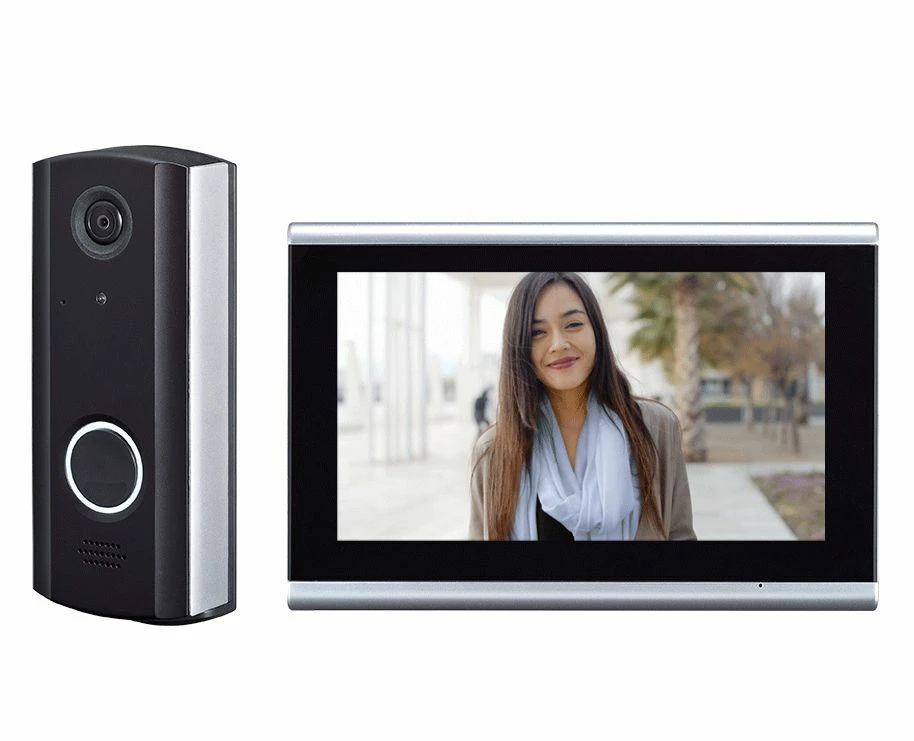

Optex iVision+ Connect IVPC-DM Video Doorbell Intercom

The Optex iVision+ Connect Wireless Video Doorbell Intercom lets you see who’s at the door from just about anywhere. It includes a wireless video intercom station for outside, and a convenient touch screen LCD monitor that can be wall mounted or used on a desktop or table top.

The video door station has built in infrared night vision so you’ll see clearly during the day and at night.

The iVision+ Connect is perfect for homes, businesses, retail stores and light commercial applications.

LOCAL VIDEO STORAGE

Video clips are stored locally on a microSD card (card not included) so you maintain control of your video.

USE WITHOUT INTERNET

The system does not require an Internet connection. It uses your WiFi local network to communicate between the door station and inside LCD touch screen(s). This means it’s not limited to a short wireless range – as long as you have WiFI coverage you can use the video stations to communicate with the entrance.

USE WITH INTERNET FOR REMOTE ACCESS AND STORAGE

If you have Internet connectivity, the iVision+ Connect lets you use multiple smart phones or tablets inside or for remote access anywhere an Internet connection takes you. Answer the door over your Internet Connection.

Plus with Internet access you can save video to the cloud using your Dropbox or Google Drive account without any fees.

WIRED POWER OR BATTERY POWERED

Both the door station and the inside video stations may be powered by full time power, or can be used on battery power. We highly recommend using full time power for the door station(s) but you can have anywhere from 2 months to a year of operation depending on use and battery saving mode.

The inside monitor station can operate for up to 48 hours on standby (less when used). So we recommend leaving it plugged in where possible, giving you a full battery if you need to move it around.

OPTIONAL DOOR RELEASE AND CHIME UNIT

The optional IVPC-DI door interface unit provides the ability to connect to a door strike or opener using an on board relay. It also adds 5 user selectable chime tones.

Optex iVision+ Connect Features

Local viewing on the included 7 inch touch screen

• Add additional touch screens
• Uses your WiFi network for local communication inside the home or business
• Records to local microSD card
• Optional free cloud access
• Can save video to Dropbox or Google Drive for free
• free iOS and Android app available
• Supports up to 6 door stations

Optex iVision+ Connect IVPC-DS (Door Station) Specifications

• Two way full duplex audio
• 720p HD video
• Viewing angle: 135 degrees horizontal, 75 degrees vertical
• WiFi 802.11 b/g/n 2.4GHZ
• Power: 10-24V AC/DC
• Includes rechargeable battery
• Battery life 2 months or up to 1 year in battery save mode
• Charging time 10 hours with 5VDC 1A supply
• IR night vision
• Operating temperature -20°C to 50°C (-4°F to 122°F)
• IPX5 weatherproof rated
• microSD card supported 4 to 32GB (card not included)

Optex iVision+ Connect IVPC-MS (Mobile Station) Specifications

• Two way full duplex audio
• 7 inch touch LCD 1024×600 resolution
• WiFi 802.11 b/g/n 2.4GHZ
• Power: 5V 1.5A adapter (included)
• Battery life up to 48 hours in standby
• Charging time 10 hours by included adapter
• Inside use only
• Operating temperature: 0°C to 40°C (32°F to 104°F)

Optex iVision+ Connect IVPC-DM Support

• Optex Overview Booklet
• IVPC-DM Installation Manual
