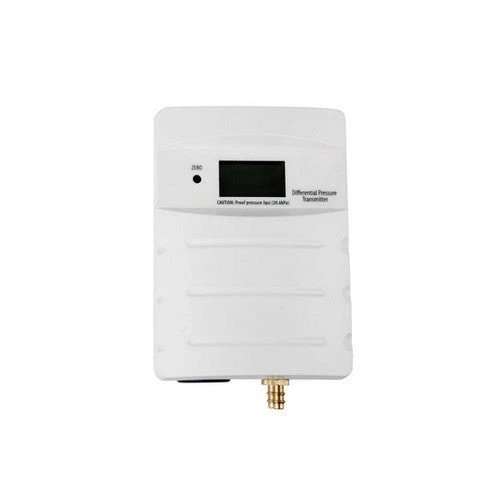

Sensaphone 4-20 MA Differential Pressure Sensor, Wall Mount

Monitor differential pressures in commercial buildings with an attractive pair of wall/ceiling mount static pickup tubes. Excellent tolerance to overpressure & vibration reduces field failures. High accurate digital sensor maintains calibration and reduces callbacks.



The sensors monitor positive and negative pressure for application versatility and the LCD is ideal for set-up, troubleshooting, and measuring.



Product Specifications:

• Name: 4-20mA Type Pressure Sensor
• Pressure Ranges: Uni-Directional  0.1/0.25/0.5/1.0/2.5/5/10” W.C. 25 Pa/50 Pa/100 Pa/250 Pa/0.5 kPa/1 kPa/2.5 kPa F.S. switch selectable
• Bi-Directional:  ±0.1/0.25/0.5/1.0/2.5/5/10” W.C. 25 Pa/50 Pa/100 Pa/250 Pa/0.5 kPa/1 kPa/2.5 kPa F.S. switch selectable
• Accuracy: ± 0.5
• Connection: 1/4-18 NPT
• Operating Voltage: 8.5 to 36 DC
• Sensor Series: 4-20mA Series
• Notes: Requires a 24VDC power supply (FGD-0070)
