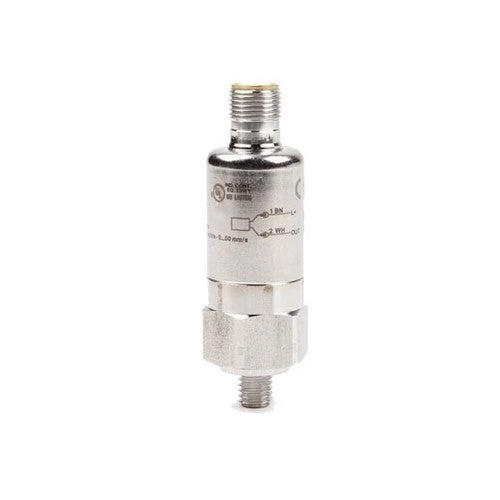

Sensaphone 4-20 MA Vibration Sensor

The electronic vibration sensor monitors the overall vibration condition of machines and equipment according to DIN ISO 10816. The sensor measures vibration velocity on a non-rotating component surface.



The characteristic value is provided as a current signal (4-20 mA) for connection to the Sensaphone. The Sensaphone triggers an alarm when an out-of-limit value is exceeded. Requires a 24VDC power supply (FGD-0070).



Product Specifications:

• Name: 4-20mA Type Vibration Sensor with 5m Cable
• Operating Voltage: 18-32 DC
• Input/Output Circuit: 1 x analog 4-20mA
• Measuring Range (mm/s): 0 – 25 RMS
• Frequency Range (Hz): 10 – 1,000
• Ambient Temperature: -25° to 80°C
• Environmental Rating: IP 67 / IP 68 / IP 69K
