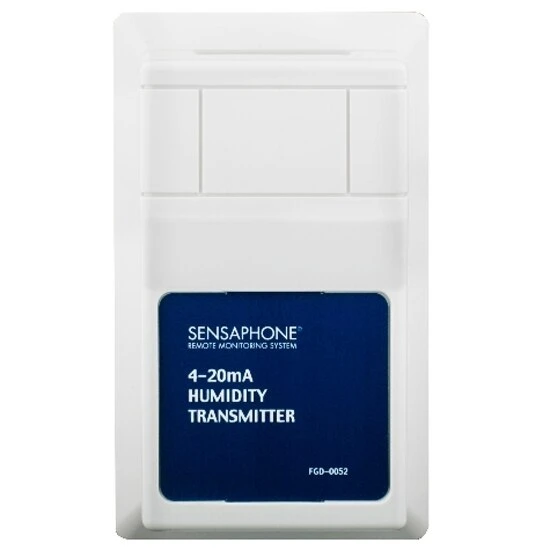

Sensaphone FGD-0052 4-20mA Humidity Transmitter

Sensaphone FGD0052 Humidity Transmitter

The space-mount, low-profile model of humidity transmitter has 10 point calibration accuracy and features a bulk polymer resistive sensor. 3% accuracy at 20 to 95% RH. Typical drift is less than 1% per year. The sensor output signal is field-selectable from 0-5 volt, 0-10 volt, or 4-20mA. The pre-wired base makes installation easy. For use with any Sensaphone model that accepts a 4-20mA input.

* Requires external 24v power supply (FGD0053 or FGD0070) unless used with the SCADA 3000 system

FGD0052 Humidity Transmitter Specifications

• 3% accuracy at 20 to 95% RH
• Typical drift is less than 1% per year
• Output signal is field-selectable from 0-5 volt, 0-10 volt, or 4-20mA
• Dimensions: 4.9″ x 3.1″ (12.4cm x 7.9cm)
• Weight: 0.2 lb (0.9 kg)

FGD0052 Humidity Transmitter Support

• FGD-0052 Cut Sheet

FGD0052 Humidity Transmitter Includes

• 1 x Humidity Transmitter
