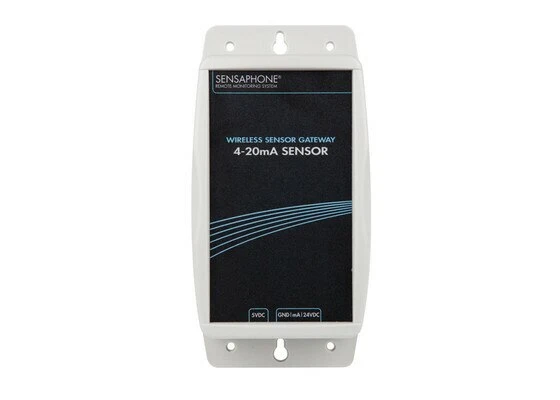

Sensaphone FGD-WSG-30420 WSG Wireless 4-20mA Interface

Sensaphone WSG30 Wireless 4-20mA Sensor Interafce

The WSG30 Wireless 4-20mA sensor is designed to work exclusively with the Sensaphone WSG30. This sensor includes a built-in radio transmitter, 4-20mA input and a 24V loop power supply. The sensor can be used to monitor the output of any 4-20mA transducer. The sensor comes with a plug-in power supply and three AA alkaline batteries which will power the sensor for several hours if main AC power fails.

Sensaphone WSG30 Wireless 4-20mA Sensor Interface Specifications

• Operating Temperature Range: 32° to 122°F (0° to 50°C)
• Operating Humidity Range: 095%
• Input Load: 260 Ohms
• Accuracy: ±1%
• Transmit Power Output: 100mW (20dBm)
• Range: Up to 300FT (90m)
• Power Requirements: (2) AA Batteries / 5VDC Power Supply (Included)
• Wireless Technology: ISM 2.4GHz, 100 mW (20dBm)
• Housing: White plastic
• Size: 6.8 x 3.5 x 1.5 (17.2cm x 8.9cm x 3.8cm)

Sensaphone WSG30 Wireless 4-20mA Sensor Interface Includes

• 1 x Sensaphone WSG 4-20mA Sensor
• 2 x AA Alkaline Batteries
• 1 x Mounting Kit
• 1 x 120VAC 60Hz/5VDC Power Supply

Sensaphone WSG30 Wireless 4-20mA Sensor Support and Downloads

• WSG 4-20mA Sensor Manual
• WSG-30 Cut Sheet
